PVC Casing Pipes

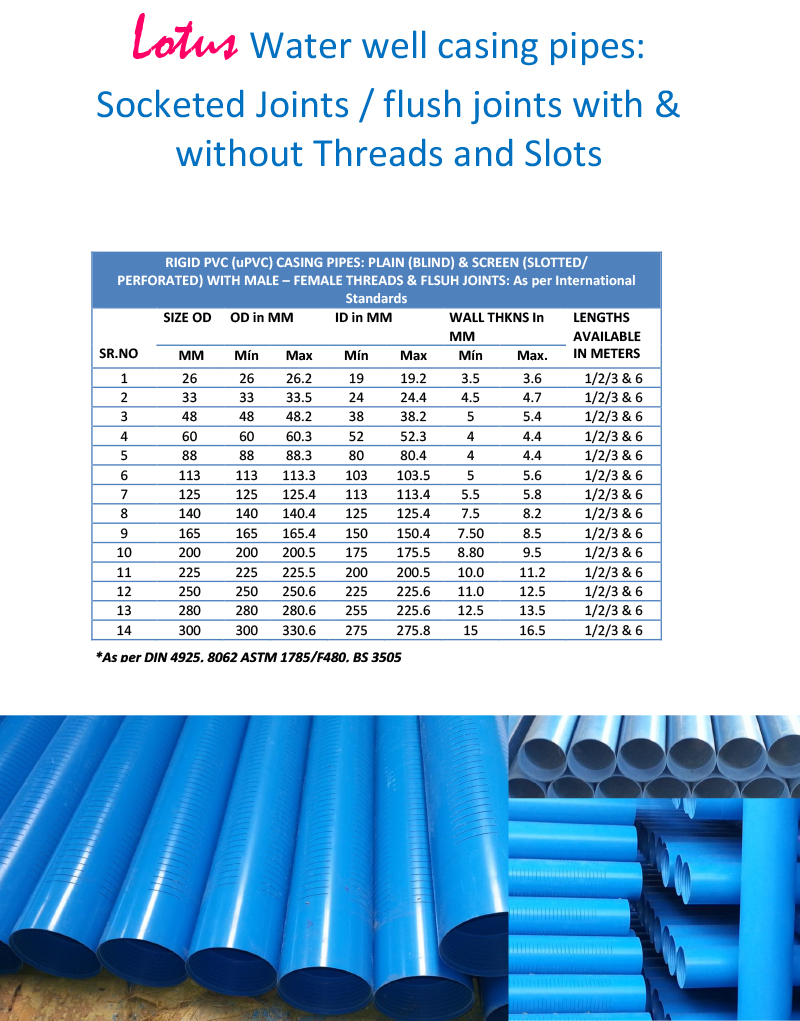

| RIGID PVC (uPVC) CASING PIPES: PLAIN (BLIND) & SCREEN (SLOTTED/PERFORATED) WITH MALE – FEMALE THREADS & FLSUH JOINTS: As per International Standards |
||||||||
|---|---|---|---|---|---|---|---|---|
SR.NO |
SIZEOD |
OD in MM |
ID in MM |
WALLTHKNS In MM |
LENGTHSAVAILABLE IN METERS |
|||
|
MM |
Min |
Max |
Min |
Max |
Min |
Max. |
|
1 |
26 |
26 |
26.2 |
19 |
19.2 |
3.5 |
3.6 |
1/2/3& 6 |
2 |
33 |
33 |
33.5 |
24 |
24.4 |
4.5 |
4.7 |
1/2/3& 6 |
3 |
48 |
48 |
48.2 |
38 |
38.2 |
5 |
5.4 |
1/2/3& 6 |
4 |
60 |
60 |
60.3 |
52 |
52.3 |
4 |
4.4 |
1/2/3& 6 |
5 |
88 |
88 |
88.3 |
80 |
80.4 |
4 |
4.4 |
1/2/3& 6 |
6 |
113 |
113 |
113.3 |
103 |
103.5 |
5 |
5.6 |
1/2/3& 6 |
7 |
125 |
125 |
125.4 |
113 |
113.4 |
5.5 |
5.8 |
1/2/3& 6 |
8 |
140 |
140 |
140.4 |
125 |
125.4 |
7.5 |
8.2 |
1/2/3& 6 |
9 |
165 |
165 |
165.4 |
150 |
150.4 |
7.50 |
8.5 |
1/2/3& 6 |
10 |
200 |
200 |
200.5 |
175 |
175.5 |
8.80 |
9.5 |
1/2/3& 6 |
11 |
225 |
225 |
225.5 |
200 |
200.5 |
10.0 |
11.2 |
1/2/3& 6 |
12 |
250 |
250 |
250.6 |
225 |
225.6 |
11.0 |
12.5 |
1/2/3& 6 |
13 |
280 |
280 |
280.6 |
255 |
225.6 |
12.5 |
13.5 |
1/2/3& 6 |
14 |
300 |
300 |
330.6 |
275 |
275.8 |
15 |
16.5 |
1/2/3& 6 |

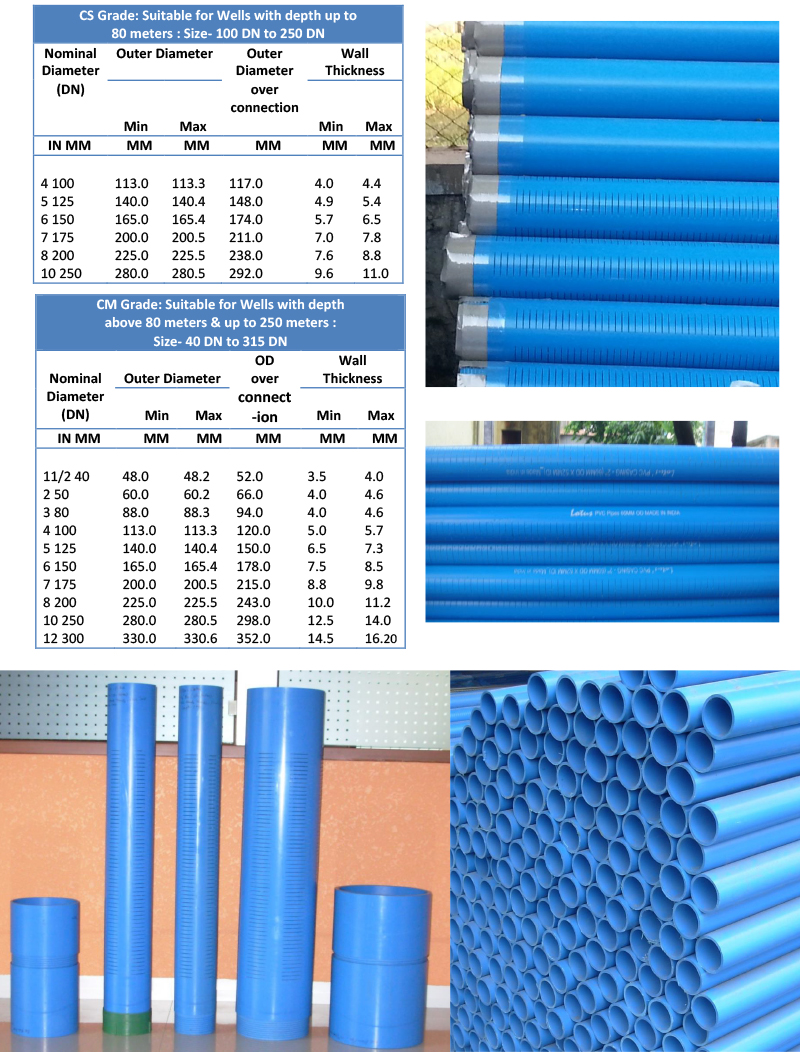

| CSGrade: Suitable for Wells with depth up to 80meters : Size- 100 DN to 250 DN | |||||
|---|---|---|---|---|---|
Nominal Diameter (DN) |
Outer Diameter |
Outer Diameter over connection |
Wall Thickness |
||
INMM |
MM |
MM |
MM |
MM |
MM |
|
4100 5125 6150 7175 8200 10250 |
113.0 140.0 165.0 200.0 225.0 280.0 |
113.3 140.4 165.4 200.5 225.5 280.5 |
117.0 148.0 174.0 211.0 238.0 292.0 |
4.0 4.9 5.7 7.0 7.6 9.6 |
4.4 5.4 6.5 7.8 8.8 11.0 |
| CMGrade: Suitable for Wells with depth above 80 meters & up to 250 meters :Size- 40 DN to 315 DN | |||||
|---|---|---|---|---|---|
Nominal Diameter (DN) |
Outer Diameter |
OD over connect-ion |
Wall Thickness |
||
|
Min |
Max |
Min |
Max |
||
INMM |
MM |
MM |
MM |
MM |
MM |
11/240 250 380 4100 5125 6150 7175 8200 10250 12300 |
48.0 60.0 88.0 113.0 140.0 165.0 200.0 225.0 280.0 330.0 |
48.2 60.2 88.3 113.3 140.4 165.4 200.5 225.5 280.5 330.6 |
52.0 66.0 94.0 120.0 150.0 178.0 215.0 243.0 298.0 352.0 |
3.5 4.0 4.0 5.0 6.5 7.5 8.8 10.0 12.5 14.5 |
4.0 4.6 4.6 5.7 7.3 8.5 9.8 11.2 14.0 16.20 |

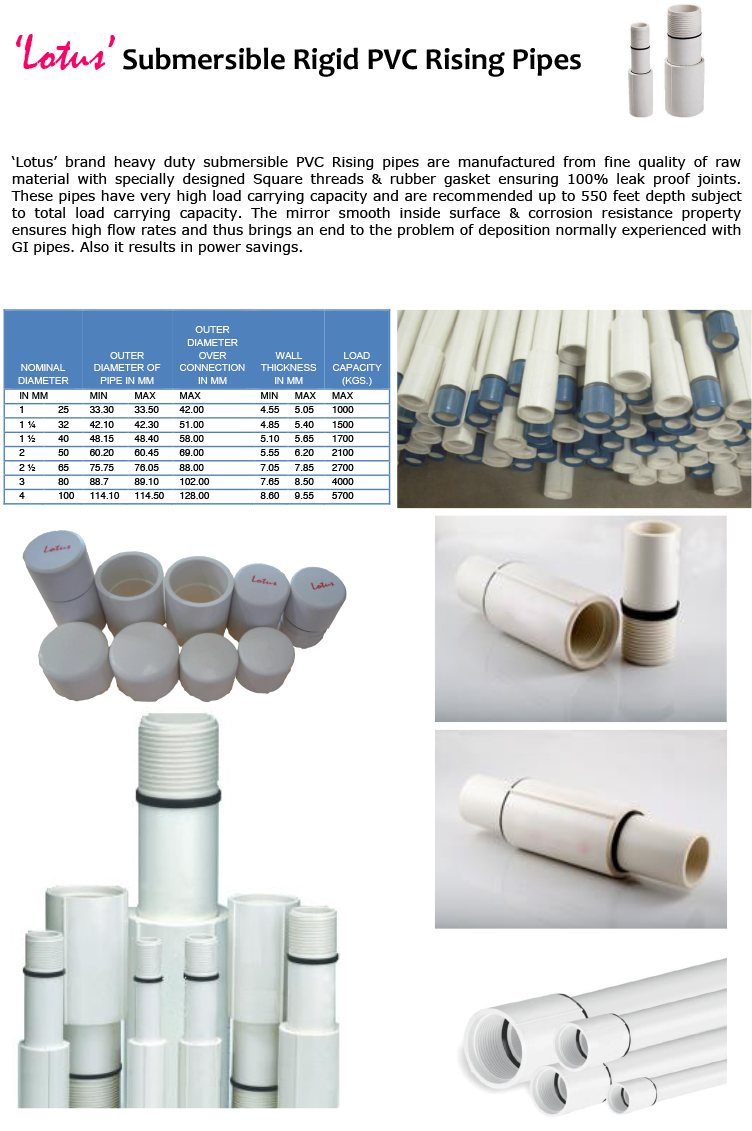

‘Lotus’ Submersible Rigid PVC Rising Pipes
‘Lotus’ brand heavy duty submersible PVC Rising pipes are manufactured from fine quality of raw material with specially designed Square threads & rubber gasket ensuring 100% leak proof joints. These pipes have very high load carrying capacity and are recommended up to 550 feet depth subject to total load carrying capacity. The mirror smooth inside surface & corrosion resistance property ensures high flow rates and thus brings an end to the problem of deposition normally experienced with GI pipes. Also it results in power savings.
|
NOMINAL DIAMETER |
OUTER DIAMETER OF PIPE IN MM |
OUTER DIAMETER OVER CONNECTION IN MM |
WALL THICKNESS IN MM |
LOAD CAPACITY (KGS.) |
|||
IN MM |
MIN |
MAX |
MAX |
MIN |
MAX |
MAX |
|
1 |
25 |
33.30 |
33.50 |
42.00 |
4.55 |
5.05 |
1000 |
1 ¼ |
32 |
42.10 |
42.30 |
51.00 |
4.85 |
5.40 |
1500 |
1 ½ |
40 |
48.15 |
48.40 |
58.00 |
5.10 |
5.65 |
1700 |
2 |
50 |
60.20 |
60.45 |
69.00 |
5.55 |
6.20 |
2100 |
2 ½ |
65 |
75.75 |
76.05 |
88.00 |
7.05 |
7.85 |
2700 |
3 |
80 |
88.7 |
89.10 |
102.00 |
7.65 |
8.50 |
4000 |
4 |
100 |
114.10 |
114.50 |
128.00 |
8.60 |
9.55 |
5700 |

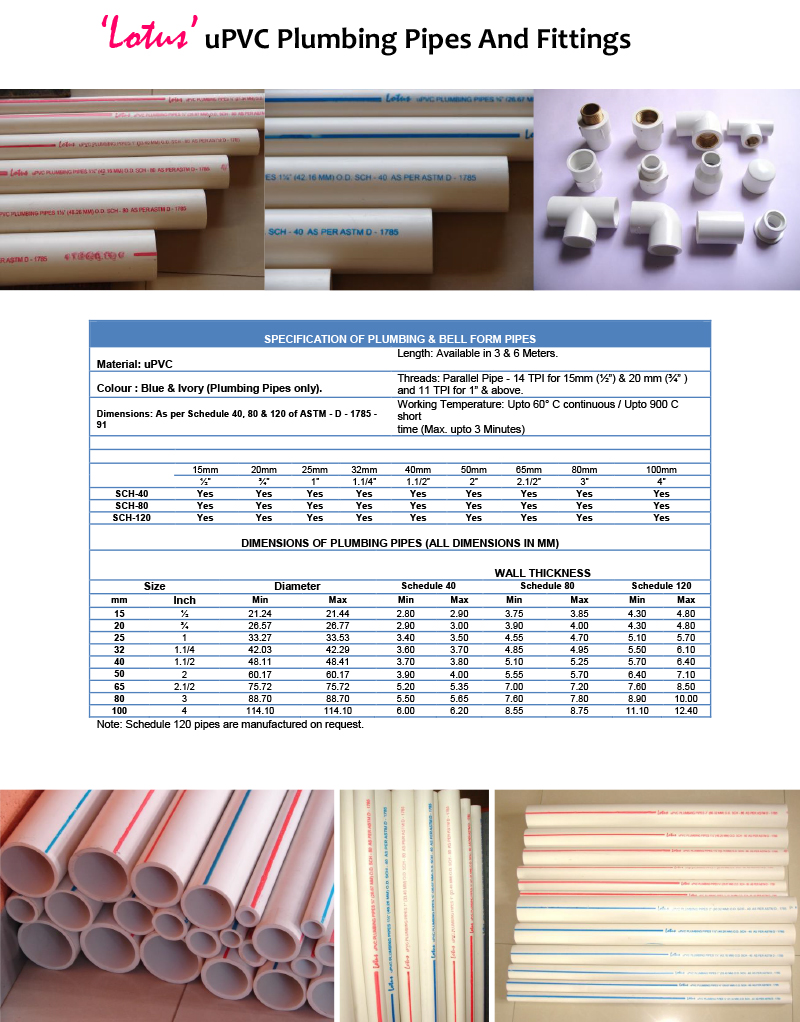

‘Lotus’ uPVC Plumbing Pipes And Fittings
| SPECIFICATION OF PLUMBING & BELL FORM PIPES | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Material: uPVC |
Length: Available in 3 & 6 Meters. |
||||||||||||||||
|
Color : Blue & Ivory (Plumbing Pipes only). |
Threads: Parallel Pipe - 14 TPI for 15mm (½”) & 20 mm (¾” ) and 11 TPI for 1” & above. |
||||||||||||||||
|
Dimensions: As per Schedule 40, 80 & 120 of ASTM - D - 1785 - 91 |
Working Temperature: Up to 60° C continuous / Up to 900 C short time (Max. up to 3 Minutes) |
||||||||||||||||
RANGE & SIZES OF PLUMBING PIPES - AVAILABILITY |
|||||||||||||||||
|
Sizes |
||||||||||||||||
Type |
15mm |
20mm |
25mm |
32mm |
40mm |
50mm |
65mm |
80mm |
100mm |
||||||||
|
½” |
¾” |
1” |
1.1/4” |
1.1/2” |
2” |
2.1/2” |
3” |
4” |
||||||||
SCH-40 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||||||||
SCH-80 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||||||||
SCH-120 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||||||||
|
DIMENSIONS OF PLUMBING PIPES (ALL DIMENSIONS IN MM) |
|||||||||||||||||
|
WALL THICKNESS |
||||||||||||||||
Size |
Diameter |
Schedule 40 |
Schedule 80 |
Schedule 120 |
|||||||||||||
mm |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
||||||||
15 |
½ |
21.24 |
21.44 |
2.80 |
2.90 |
3.75 |
3.85 |
4.30 |
4.80 |
||||||||
20 |
¾ |
26.57 |
26.77 |
2.90 |
3.00 |
3.90 |
4.00 |
4.30 |
4.80 |
||||||||
25 |
1 |
33.27 |
33.53 |
3.40 |
3.50 |
4.55 |
4.70 |
5.10 |
5.70 |
||||||||
32 |
1.1/4 |
42.03 |
42.29 |
3.60 |
3.70 |
4.85 |
4.95 |
5.50 |
6.10 |
||||||||
40 |
1.1/2 |
48.11 |
48.41 |
3.70 |
3.80 |
5.10 |
5.25 |
5.70 |
6.40 |
||||||||
50 |
2 |
60.17 |
60.17 |
3.90 |
4.00 |
5.55 |
5.70 |
6.40 |
7.10 |
||||||||
65 |
2.1/2 |
75.72 |
75.72 |
5.20 |
5.35 |
7.00 |
7.20 |
7.60 |
8.50 |
||||||||
80 |
3 |
88.70 |
88.70 |
5.50 |
5.65 |
7.60 |
7.80 |
8.90 |
10.00 |
||||||||
100 |
4 |
114.10 |
114.10 |
6.00 |
6.20 |
8.55 |
8.75 |
11.10 |
12.40 |
||||||||
Note: Schedule 120 pipes are manufactured on request.
